Refrigeration Systems
Semi-hermetic Series
(Super Tropicalised)
Packaged for
power-packed Performance
Blue Star, India's leading refrigeration solutions provider, offers you a wide range of refrigeration units to suit different business needs.
Processed food industry segments like poultry, marine and meat processing require heavy-duty operations, while the ice-cream industry is growing by leaps and bounds and needs large storages at production and distribution points. To tackle these critical temperature requirements, Blue Star brings to you a fully-packaged semi-hermetic refrigeration system.
In all these applications, we understand what you need to succeed: reliability and the assurance of holding temperature maintained within critical limits. These are possible only through well-packaged, well-engineered refrigeration systems with reliable components.
Blue Star's range of condensing units is designed using world-class technology and components. It is created to function efficiently even at high ambient temperatures, assuring you of trouble-free temperature management even during peak summer time. What's more, the range is available in both air cooled and water cooled options to suit different needs.

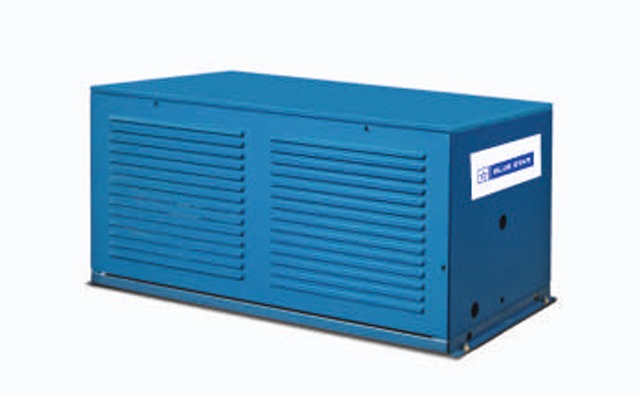

The new range of air cooled condensing units is robust in construction and uses world-class and highly reliable components. It is designed to enable quick and easy installation.
These units use semi-hermetic reciprocating compressors that offer significantly higher cooling capacity, reliability and flexibility than market standards. They also come with factory fitted components and are extensively tested for reliability. So you are assured of qualitative system balancing under controlled conditions, which ensures delivery of committed capacities.
Salient Features
Our refrigeration solutions are designed for efficiency, reliability, and durability.
Air Cooled Condenser
Tropicalised high ambient air cooled tube and fin condenser, with internally grooved copper tubes, increases heat transfer surface area for better efficiency.
Condenser Fans
Reliable axial fans ensure uniform airflow across the heat exchanger, increasing COP and reducing power consumption. Equipped with an HP switch for optimum performance.
Weather-proof Housing
Sturdy base frame with powder-coated, corrosion-resistant casing ensures durability in all environments.

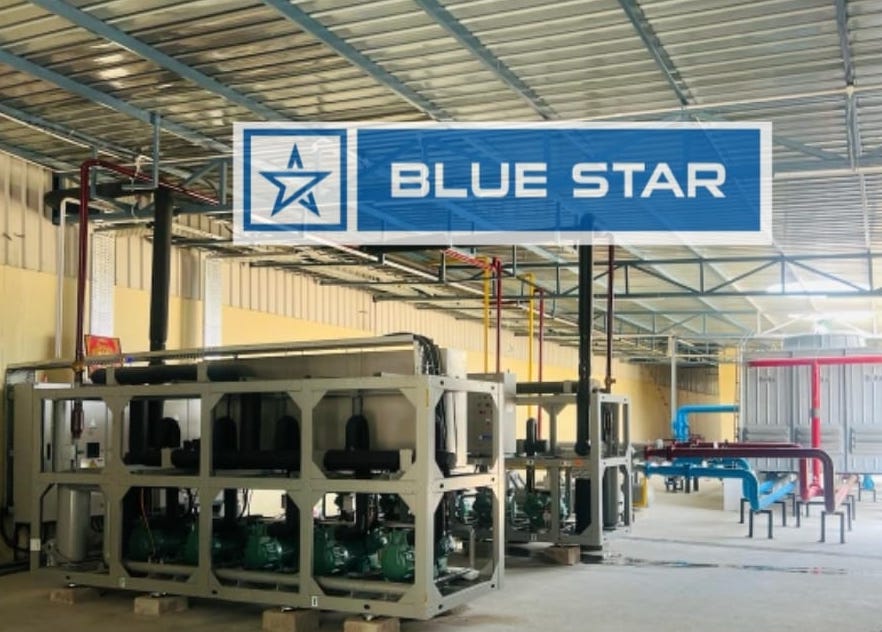

WATER COOLED
CONDENSING UNITS
Blue Star's water cooled condensing units include a semi-hermetic compressor, water cooled condenser with safety valve connection, service valves, a base frame and vibration absorber installed on the discharge line, in some models. They are of high-efficiency design with spacious dimensions. At the same time, they are compact and generally consume less power. Their shell and tube sheet is made of carbon steel, and the tubes are of copper with integrally finned thick walls.
Water cooled units are generally preferred for cold rooms in hotels and the processed food segment, for reasons of availability of treated water. It is convenient to locate water cooled condensing units even in places without adequate ventilation for condensation.
Water cooled units are capable of delivering consistent performance irrespective of variations in ambient conditions. Moreover, the water side connections allow supply of both mains water and cooling tower water.

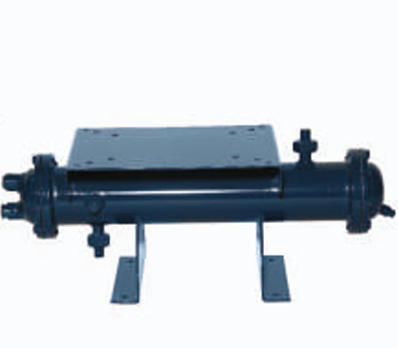

• Shell and Tube Condenser
Water cooled condensers come with internally grooved and externally finned tubes which increase heat transfer area, needing less refrigerant charge. Circular end covers result in higher flow rate, increasing COP and lowering power consumption.
• Base Frame
Sturdy and robust, CNC punched and bent 4 mm thick with hexagon rivet nuts. Ensures no rusting and longer product life.
SALIENT
FEATURES
COMMON
FEATURES

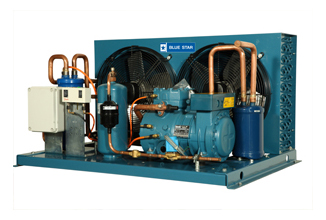

Semi-hermetic Compressor
Compact, economical, and easy to maintain. Removable heads, stator cover, bottom plate, and housing cover allow easy field repairs. Fitted with suction/discharge service valves and crank case heater.
Diagnostic Black Box
Ensures constant monitoring and fast diagnosis. Connects to a computer via USB to identify malfunctions quickly.
Oil Separator
Allows longer piping distances and enhances system reliability and uptime. Comes with GOMAX hose assembly for oil return line.
Liquid Receiver
Good quality receiver with Rotalock valve ensures constant refrigerant flow to the thermostatic expansion valve, increasing system reliability.
GOMAX Flexible Tubes
Eliminate leakage during operation and transport, improving product life and aesthetics.
Vibration Eliminators in the Discharge Line
Reduces vibration during operation, minimizing chances of refrigerant leakage.
Sturdy HP/LP Mounting Bracket
3mm thick, galvanised robust bracket for mounting HP/LP switch, ensuring accurate readings.
Brazing
42% silver brazing rods provide better joint protection and minimize refrigerant leakage.
Refrigeration Controls
Fitted with HP/LP switches, GOMAX hose assembly, filter drier, sight glass, and liquid line solenoidal valve. Components from internationally reputed manufacturers.

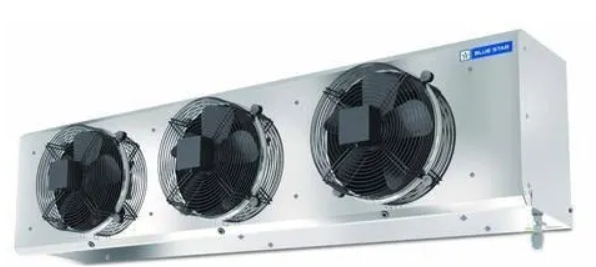

Evaporating Units
Blue Star's evaporators are compact and sleek. The evaporator is housed within the cold storage and occupies minimum space. This allows you to utilise the maximum volume of cold storage.
Features:
Stainless steel body (SS 304) for enhanced durability and strength.
Excellent corrosion resistance.
Inner grooved copper tubes for superior heat transfer.
4 FPI coil for low temperature units.
Compact design for optimal space utilization.
External rotor driven fans have low noise levels and conform to IP45 standards.
Removable side panels for easy service and minimum downtime.
Defrost heaters within the coil to ensure total defrost.
Technical Specifications
Air Cooled - High Temperature

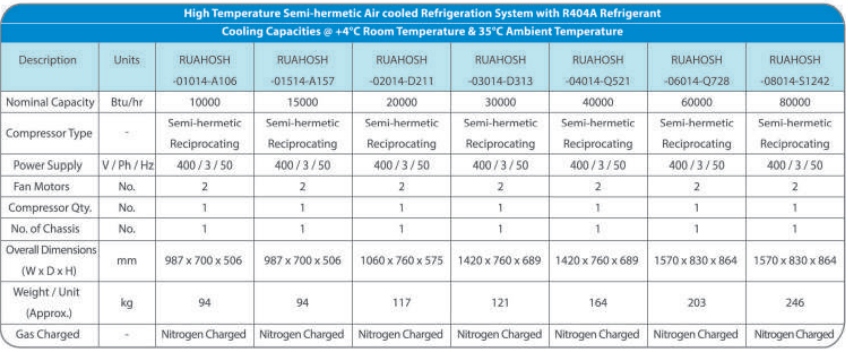

Outdoor Unit

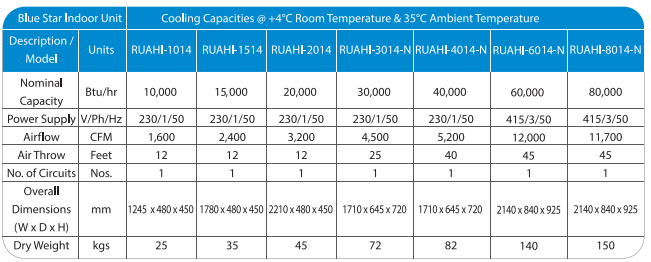

Indoor Unit
Air Cooled - Low Temperature

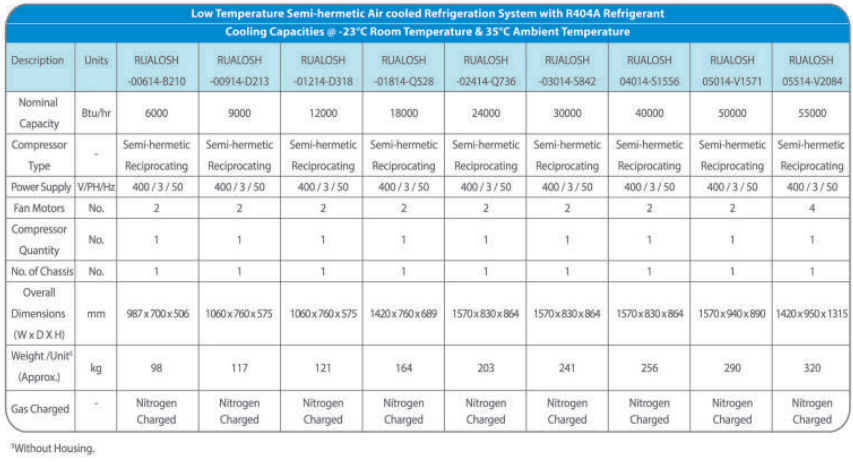

Outdoor Unit

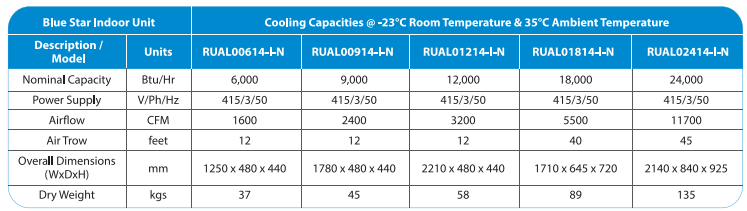

Indoor Unit

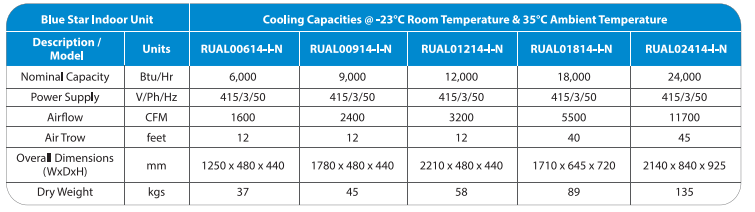

Water Cooled - Low Temperature

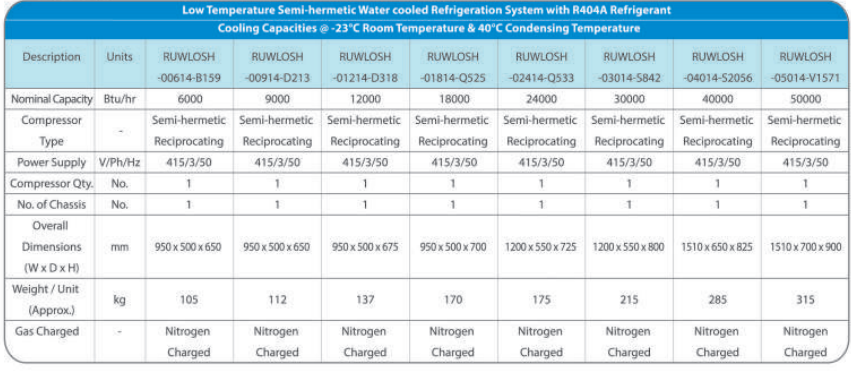

Outdoor Unit
Indoor Unit

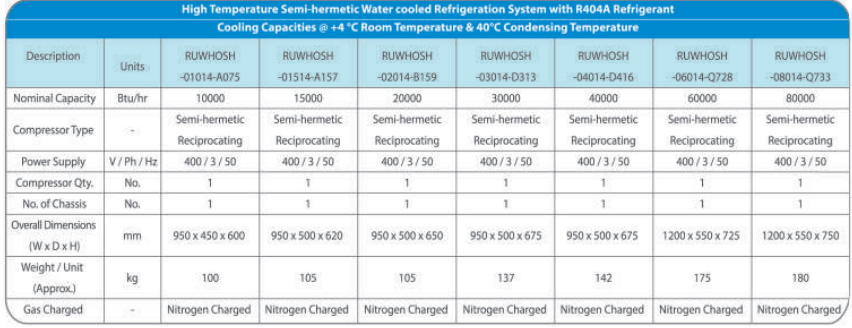

Water Cooled - High Temperature
Outdoor Unit

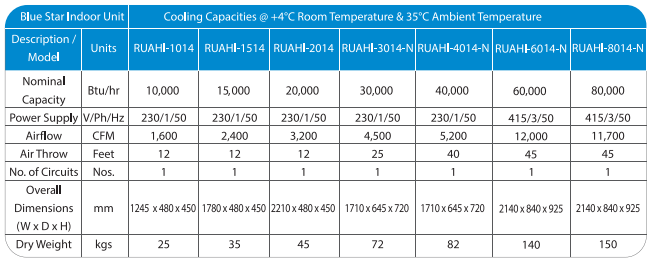

Indoor Unit
Notes
- Capacity rating is based on Standard: EN13215.
- Capacity tolerance is maintained as per standard norms.
- Specifications are subject to change without prior notice.
- Refrigeration capacity is calculated on standard rated conditions.
